Honolulu International Airport Emergency Powerplant

Honolulu, Hawaii

• Notable Features

  • 4-25MW Emergency Generators

  • Custom Field-Erected Fuel Tanks

  • Generator Engine Exhaust System

  • Distributed Power Generation

• Best Value Design Elements

  • Automated electric power

  • Monitoring, and distribution system allows for remote dispatch by HECO

  • Multi-story building design developed to fit within the available footprint

  • Direct connection to the HECO substation allows for switching of power to feed the airport’s circuits in the event of a power outage

  • Sound attenuation silencers incorporated into the design to meet city and state noise limits.

  • Fuel system designed to use environmentally-friendly biodiesel fuel

Hawaiian Electric Company (HECO) and the Department of Transportation Airports Division (DOTA) each faced engineering challenges. HECO needed a solution to strengthen their electrical grid during peak demand periods, while DOTA aimed to construct a consolidated facility to provide emergency power to the Daniel K. Inouye International Airport.

As the prime consultant, InSynergy Engineering, Inc. developed engineering concept sketches for potential sites and evaluated their feasibility. Ultimately, a site near HECO’s existing electrical substation serving the airport was chosen for the construction of a multi-story emergency power generation facility. Our team provided mechanical, electrical, and fire protection design, as well as project management. This facility can supply up to 80% of the airport’s electrical demand during emergencies. In non-emergency periods, it supplements HECO’s electrical grids by providing up to 8MW of power with a single click from a remote dispatch location.

The building features four 2.5MW prime power-rated emergency generators, an intake and discharge air system, and an engine exhaust system meeting strict EPA emissions standards. Additionally, the fuel storage and delivery system includes two custom-built steel tanks capable of keeping the airport operational for at least 96 hours. Notably, the entire fuel system is designed to support biodiesel fuel. Furthermore, a sophisticated generator master control system automatically monitors power demands from over 10 electrical vaults throughout the airport, supplying emergency power based on priority demands identified by DOTA.

Maunakea Marketplace Affordable Rentals

• Notable Features

  • 25,000 Square Foot Area

  • Gathering Place

  • Fitness/Yoga Area

  • Security Gate and Elevator

  • Designed & Constructed in Partnership with Former Governor Abercrombie & Department of Community Services

• Best Value Design Elements

  • ENERGY STAR appliances

  • Water saving fixtures

  • Dedicated outside air unit with hot gas reheat

Honolulu, Hawaii

Maunakea Marketplace Affordable Rental was a 2020 renovation project located in Honolulu’s Chinatown. This project converted 25,000 square feet of storage and retail spaces to new residential apartments. The project is located on the second floor of Maunakea Marketplace above a retail center with an open marketplace and food court.

InSynergy Engineering, Inc. provided mechanical, electrical, and fire protection design work for the renovation of Maunakea Marketplace Affordable Rental. The apartment space consists of thirty-eight affordable rental units ranging from studios to two-bedrooms. There are also office spaces and common areas such as a gathering place, fitness area, and laundry room. Security gates and an elevator were added to isolate the second floor living space from the first floor retail area.

Each living unit has its own direct-expansion fan coil unit, bathroom exhaust fan, and electric water heater. The common spaces and office spaces were provided with its own cooling and exhaust systems as well. A dedicated outside air unit and air cooled condensing units were located on the roof of the building. Electrical work included lighting and providing power to the spaces. Fire sprinkler and fire alarm systems were included as part of fire protection design work.

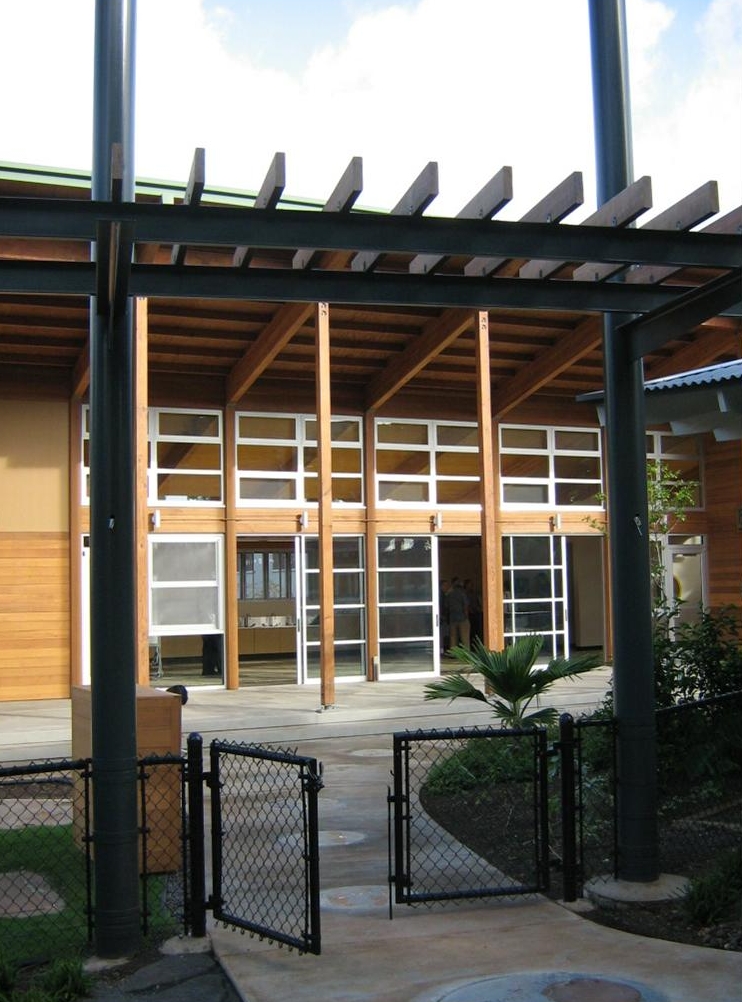

Honolulu Zoo Learning Center

HONOLULU, HAWAII

InSynergy Engineering, Inc. provided the mechanical and electrical engineering design work for plumbing, ventilation, air conditioning, fire protection, power, and lighting.

The mechanical scope of work included the following: provided plumbing to new restroom plumbing fixtures; demolition plans for existing plumbing fixtures; air conditioning throughout the space consisting of ducted DX split air conditioning units; and ventialtion for restrooms and general areas.

The electrical scope of work included providing site electrical removal plans and new site power to the building; site lighting within the area of work and the exterior of the building; interior power distribution, lighting, data, and telecom systems; a manual fire alarm system; coordination of telecom requirements with City and County IT personnel; and on-site renewable energy to a 1,000 sf classroom space via a 6 kW solar photovoltaic system.
